PRO series

USB CyCLONE

Specially designed for copying portable external Hard Drive

USB CyCLONE provides not only excellent functions, but also working in order. Whether it's copying, erasing, or testing hard drives, the USB CyCLONE can meet your needs. Supporting a maximum hard disk capacity of 128TB with a unique hard drive layout design, the USB CyCLONE is the most practical choice for a mobile hard drive duplication.
Buy Now!
1:15 USB Duplicator

Orderly arrangement of hard drive

Using a line-divided placement method and professional analysis of the hard drive size in the market, we calculated and designed the perfect spacing between the USB slots and the hard drive. The organized slot design enhances the ease of mobile hard drive copying!
unique design for placing external hard drive and usb slots
connect the usb to the socket

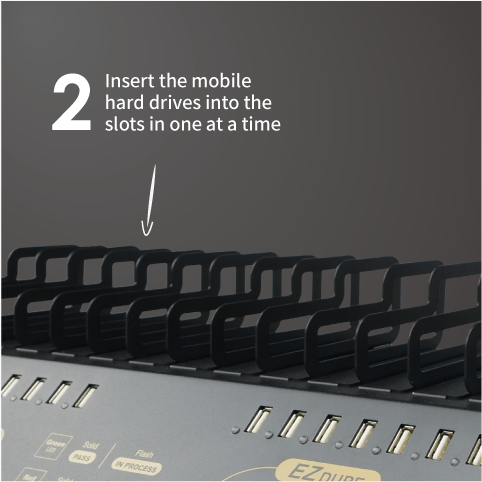

insert the external drive into the slot one at a time
start to copy after inserting

Asynchronous Copy Increase Working Efficiency Significantly

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
every usb slots works independently

Choose the most efficient copy mode to fit your needs

4 copy modes for USB are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.
Copy Area
copy external drive with system and files

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.
copy external drive with whole media

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.
copy external drive with percentage copy

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.
copy external drive with all partition

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example

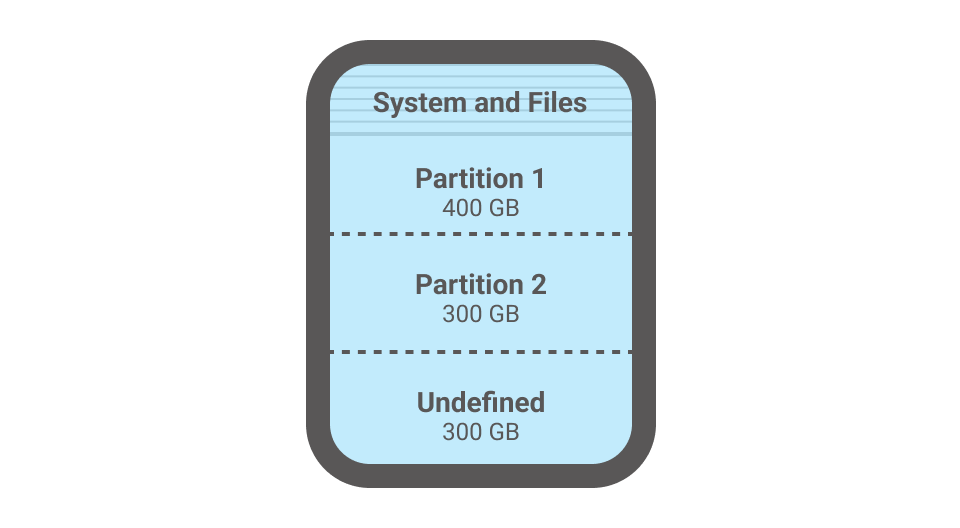

A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

Four Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse USBs, this is an ideal function to erase data based on different level of secrecy.
USB sanatize with quick erase

Quick Erase

Erase the index of a USB within a few seconds.

USB sanatize with full erase

Full erase

Erase the data from a USB by overwriting each sector which is able to read/write data.

USB sanatize with DoD erase

3-Pass DoD

Erase USB 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

USB sanatize with DoD erase

7-Pass DoD

Erase USB 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

testing bulk of USB on speed, capacity

Powerful Quality Check

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed

Other Features

Independent bandwidth design; no loss in speed even when copying to multiple devices

User-friendly operation interface that's easy to use

Automatically alerts user to remove slow hard drives to prevent slow drives from slowing down the overall copy speed

Asynchronous operation effectively increases productivity

Supports hard drive up to 128TB

USB CyCLONE Duplicator Tutorial

Technical Specification

Operation Type Standalone (No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Targets 15　(Model No. DM-FU0-8VP15P)
Copy Speed 45MB/s
Copy Mode Synchronous/ Asynchronous
Copy Area Whole Media / System and Files(Intelligent Copy)/
All Partition Copy/Percentage copy
Supported Media USB 3.2 and backwards compatible
2.5" hard drive
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
macOS: HFS, HFS+, HFSX
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Requirement 100~240V
Size 40*18*18.5(cm)
Net Weight 5kg
Temperature Range Operating：41°F ~ 113°F (5°C ~ 45°C)
Storage：-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating：20%~80%
Storage：5%~95%
