Classic Series

USB Pantera

Professional USB Duplicator — Quickly complete a large number copies of USB flash drive

USB Pantera can easily help you complete a large number of copies. Each port is independent with copy speed of 35MB/S, enabling you to copy to multiple devices without losing speed. With asynchronous copy allowing different USBs to start and end copying at different times, intelligent analysis copies only the data area and can greatly improve production efficiency.

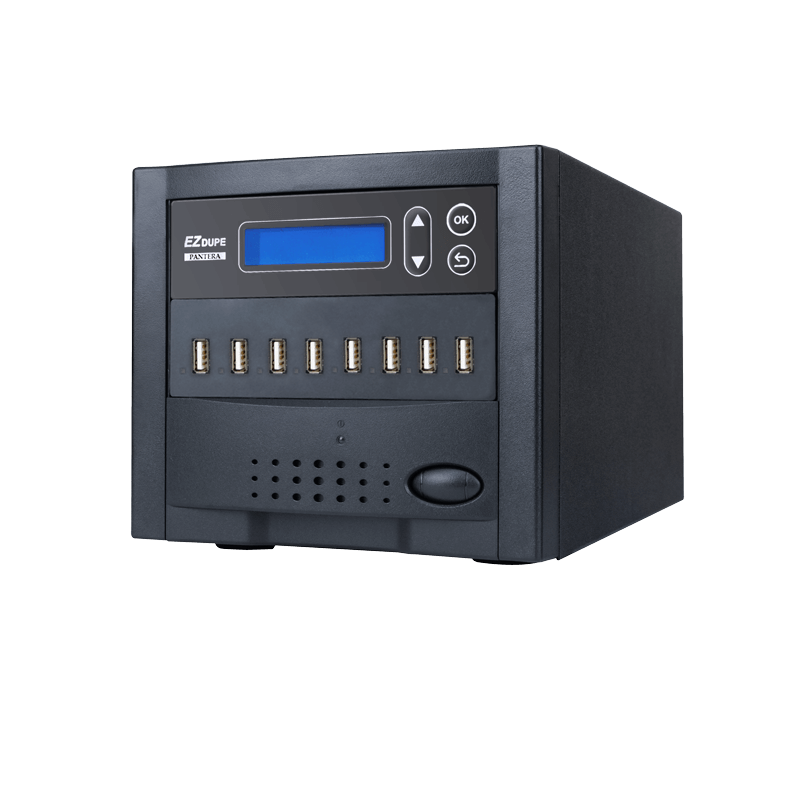

1 to 7 USB Duplicator
USB duplicator fast copy speed

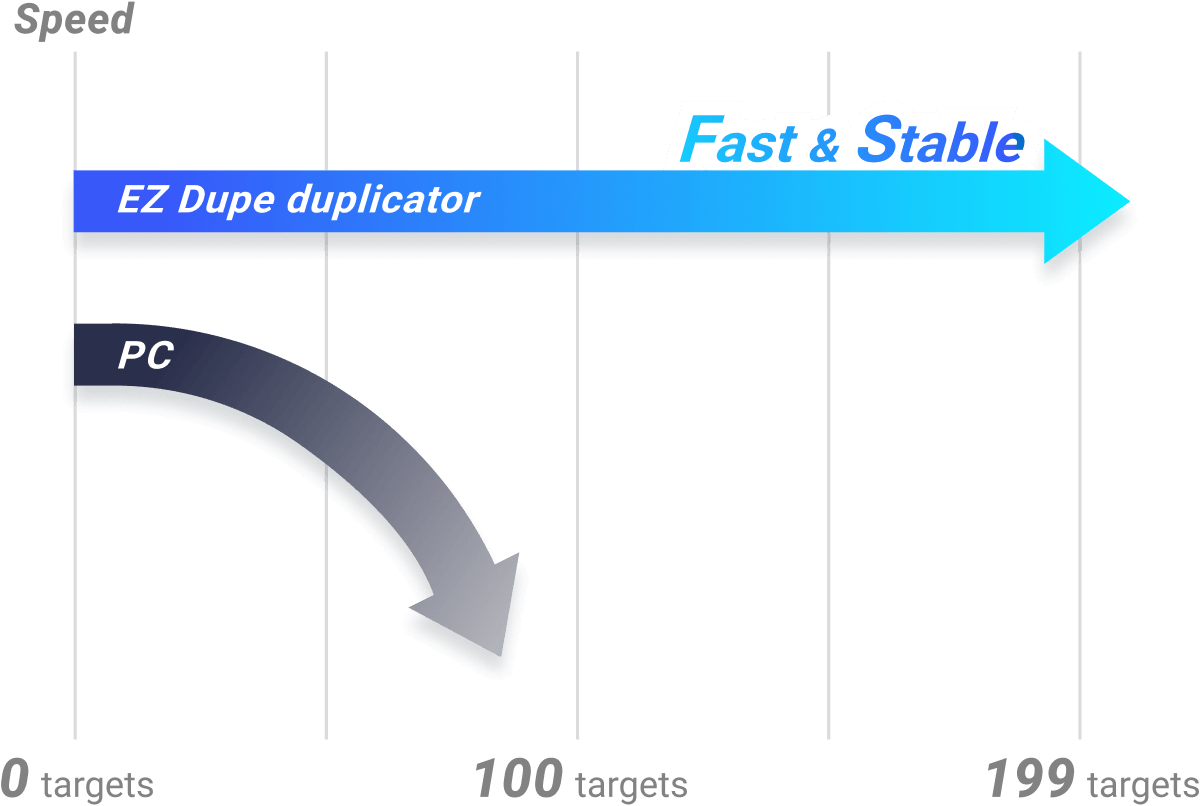

Speedy - Copying Speed up to 35MB/s

The copy speed of USB Pantera Duplicator is up to 35MB/s or 2.1GB/min. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.

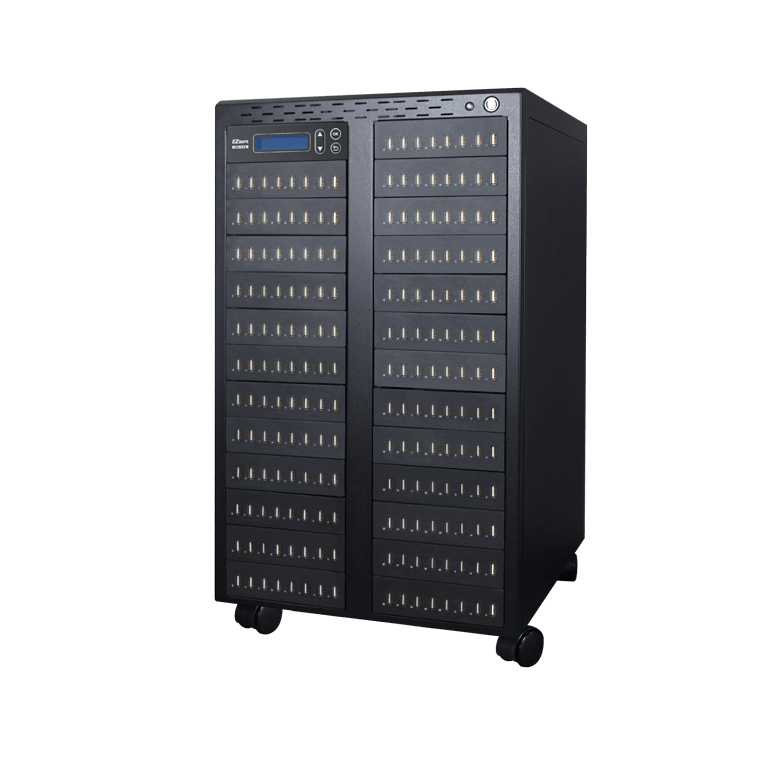

1 to 135 usb duplicator

Remarkably High Speed and Unrivaled Productivity

Up to 199 ports are available for your need of high productivity. The ultra capacity of EZ Dupe USB duplicator is definitely your choice for mass production.

Contact Us now Diagnose your problems of copy

Asynchronous Copy Increase Working Efficiency Significantly

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
every ports has its own copy process

Choose the most efficient copy mode to fit your needs

4 copy modes for USB are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.
Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

Four Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse USBs, this is an ideal function to erase data based on different level of secrecy.
USB sanatize with quick erase

Quick Erase

Erase the index of a USB within a few seconds.

USB sanatize with full erase

Full erase

Erase the data from a USB by overwriting each sector which is able to read/write data.

USB sanatize with DoD erase

3-Pass DoD

Erase USB 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

USB sanatize with DoD erase

7-Pass DoD

Erase USB 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

Other Features

Standalone, no need of computer or software, therefore no virus infection

Simple and intuitive user interface

USB Pantera Duplicator Tutorial

Technical Specification

Operation Type Standalone (No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Targets 15 (Model No. DM-FU5-8V15TC)

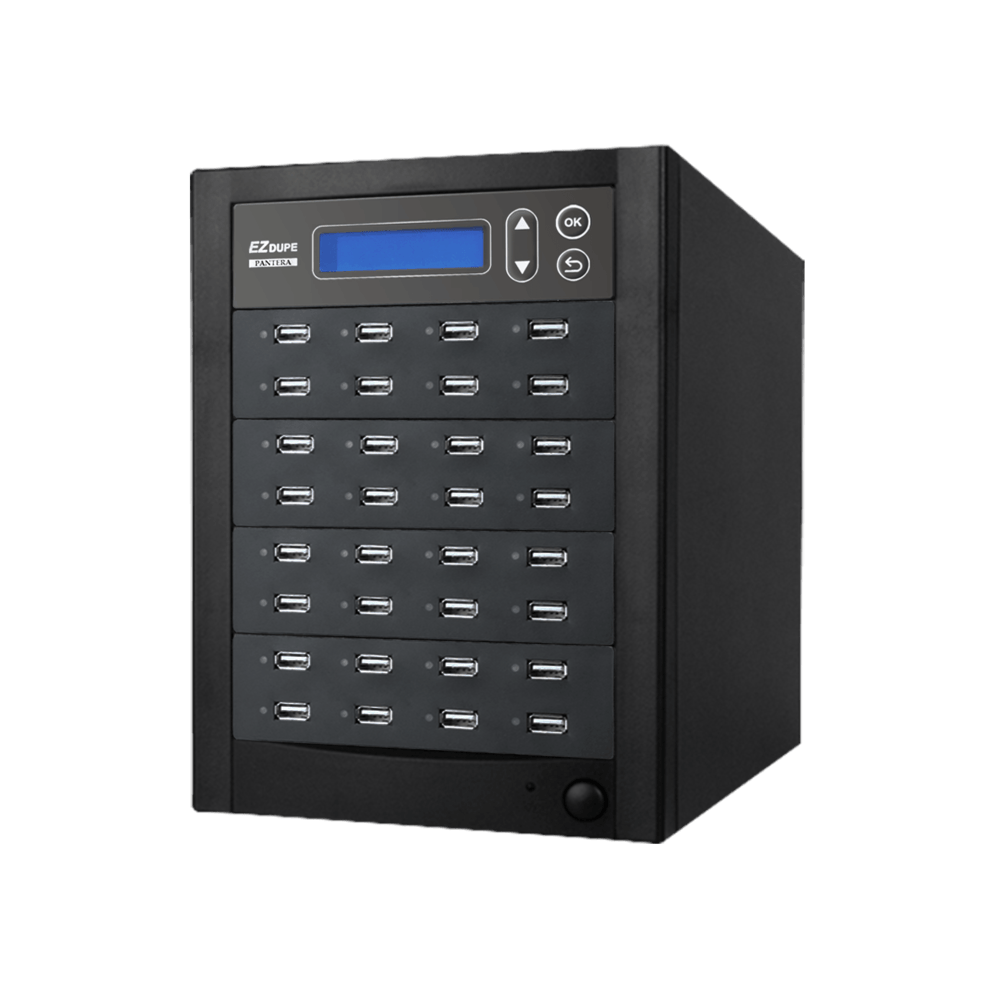

31 (Model No. DM-FU5-8V31TC)
47 (Model No. DM-FU5-8V47TC)

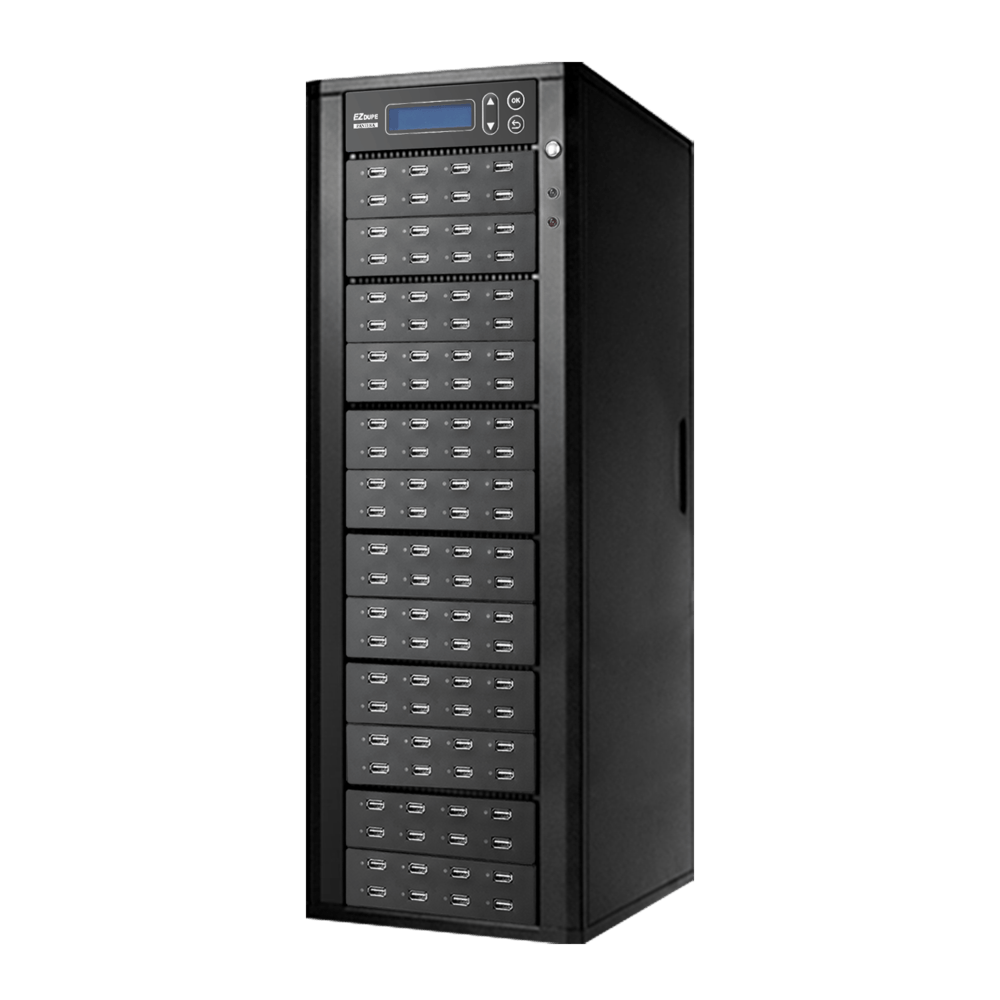

95 (Model No. DM-FU5-8V95TC)
199 (Model No. DM-FU5-8V199TC)
Copy Speed 35MB/s
Copy Mode Synchronous/ Asynchronous
Copy Area Whole Media / System and Files(Intelligent Copy)/
All Partition Copy/Percentage copy
Supported Media USB 3.2 and backwards compatible, 2.5" External HDD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
macOS: HFS, HFS+, HFSX
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Requirement 100~240V
Size & Net Weight

1 to 15: 29*19*17cm/ 4kg

1 to 31: 33*18*28cm/ 7kg

1 to 47: 42*22*62cm/ 9kg

1 to 95: 41*22*62cm/ 15kg

1 to 199: 60*36*41cm/ 30kg

Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Storage:5%~95%
Certification FCC, CE, RoHS
