SD/microSD Pantera

Professional SD/micro SD Duplicator — Quickly complete a large number copies of flash media

SD/microSD Pantera can easily help you complete a large number of copies. Each port is independent with copy speed of 35MB/S, enabling you to copy to multiple devices without losing speed. With asynchronous copy allowing different USBs to start and end copying at different times, intelligent analysis copies only the data area and can greatly improve production efficiency.
sd/microSD duplicator with 2GB/m copy speed

Speedy - Copying Speed up to 35MB/s

The copy speed of SD/microSD Pantera is up to 35MB/s or 2.1GB/min. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.
SD/microSD Pantera loaded with sd and microSD socket

SD and micro SD dual slot design

Equipped with SD and microSD card slots at the same time without needing an adapter or additional expansion. Experience a higher level of freedom!

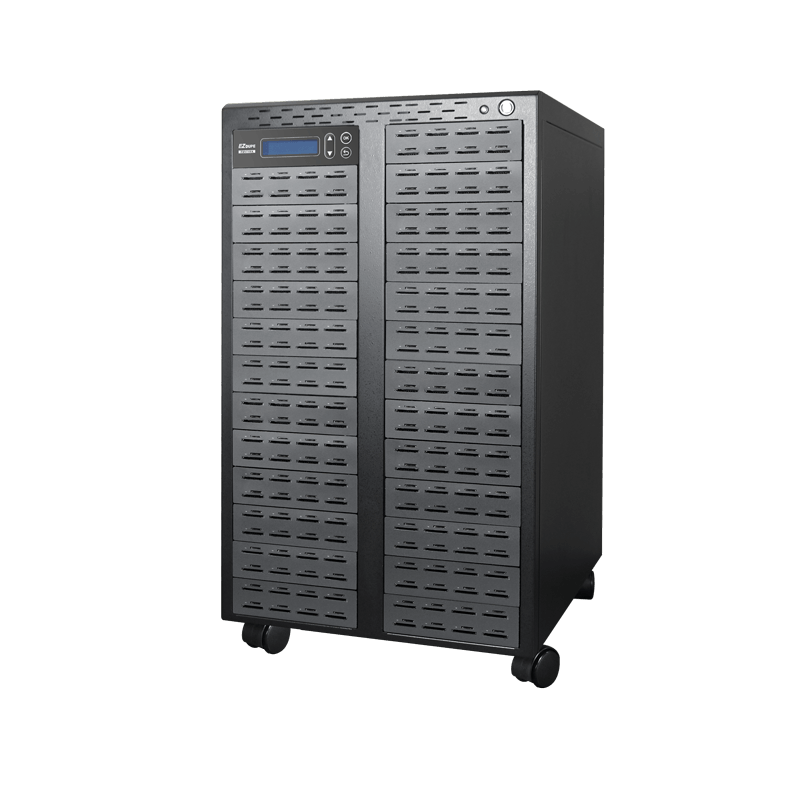

199 ports sd/microSD duplicator

Ultra Productivity

Up to 199 ports are available for your option depending on your project needs. The ultra capacity of EZ Dupe SD/microSD Pantera is definitely your choice for mass production.

Asynchronous Copy Increase Working Efficiency Significantly

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
every ports has its own copy process

Choose the most efficient copy mode to fit your needs

4 copy modes for SD/microSD card are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.
Copy Area
Uncopied Area

Whole media copy -
Longer copy time

Whole Media copy will copy the entire SD/microSD card regardless of whether it has been partitioned or not.

System and Files Copy –
Time-saving mode

System and Files Copy copies only stored system and files data, not unused space area.
Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied, saving time.

All Partition Copy –
Copies partitioned area only

Example: a 600GB SD/microSD card has two partitions as Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

Percentage copy

When the file system of a SD/microSD card is undefined, Percentage Copy can be used by setting up the starting and ending point of data to copy.

Four Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse memory cards, this is an ideal function to erase data based on different level of secrecy.
memory card sanatize with quick erase

Quick Erase

Erase the index of a memory card within a few seconds.

memory card sanatize with full erase

Full erase

Erase the data from a memory card by overwriting each sector which is able to read/write data.

memory card sanatize with DoD erase

3-Pass DoD

Erase memory card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

memory card sanatize with DoD erase

7-Pass DoD

Erase memory card 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

Other Features

Simple and intuitive user interface

Standalone, no need of computer or software, therefore no virus infection

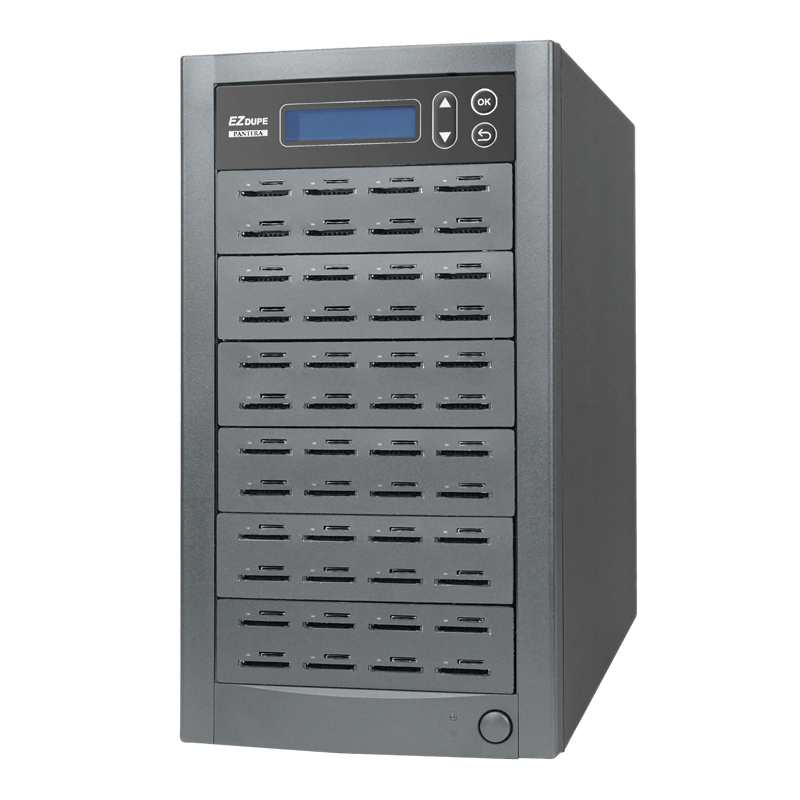

SD/microSD Pantera Duplicator

SD/microSD Pantera-
Copy and Compare
SD/microSD Pantera-
Asynchronous Copy

Technical Specification

Operation Type Standalone(No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Target 15 (Model No. DM-FU5-8CB15TC)
31 (Model No. DM-FU5-8CB31TC)
47 (Model No. DM-FU5-8CB47TC)
95 (Model No. DM-FU5-8CB95TC)
199 (Model No. DM-FU5-8CB199TC)
Copy Speed 35MB/s
Copy Mode Sychronous / Asynchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)/
All Partition Copy/Percentage copy
Supported Media SD or microSD/ TF card (format: SD/SDHC/SDXC)
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Required 115~230V
Size & Net Weight

1 to 15: 29*19*17cm/ 4kg

1 to 31: 33*18*28cm/ 7kg

1 to 47: 42*22*62cm/ 9kg

1 to 95: 41*22*62cm/ 15kg

1 to 199: 60*36*41cm/ 30kg

Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Certification FCC, CE, RoHS
