Classic series

CFast Pantera

Professional CFast Duplicator — Quickly complete a large number copies of CFast card

CFast Pantera can easily help you complete a large number of copies. Each port is independent with copy speed of 150MB/S, enabling you to copy to multiple devices without losing speed. With asynchronous copy allowing different CFast cards to start and end copying at different times, intelligent analysis copies only the data area and can greatly improve production efficiency.
1:7 Cfast Duplicator
Copy Cfast card up to 150MB/s

Ultra High Copy Speed

The copy speed of CFast Card Duplicator is up to 150MB/s or 9GB per minute. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.

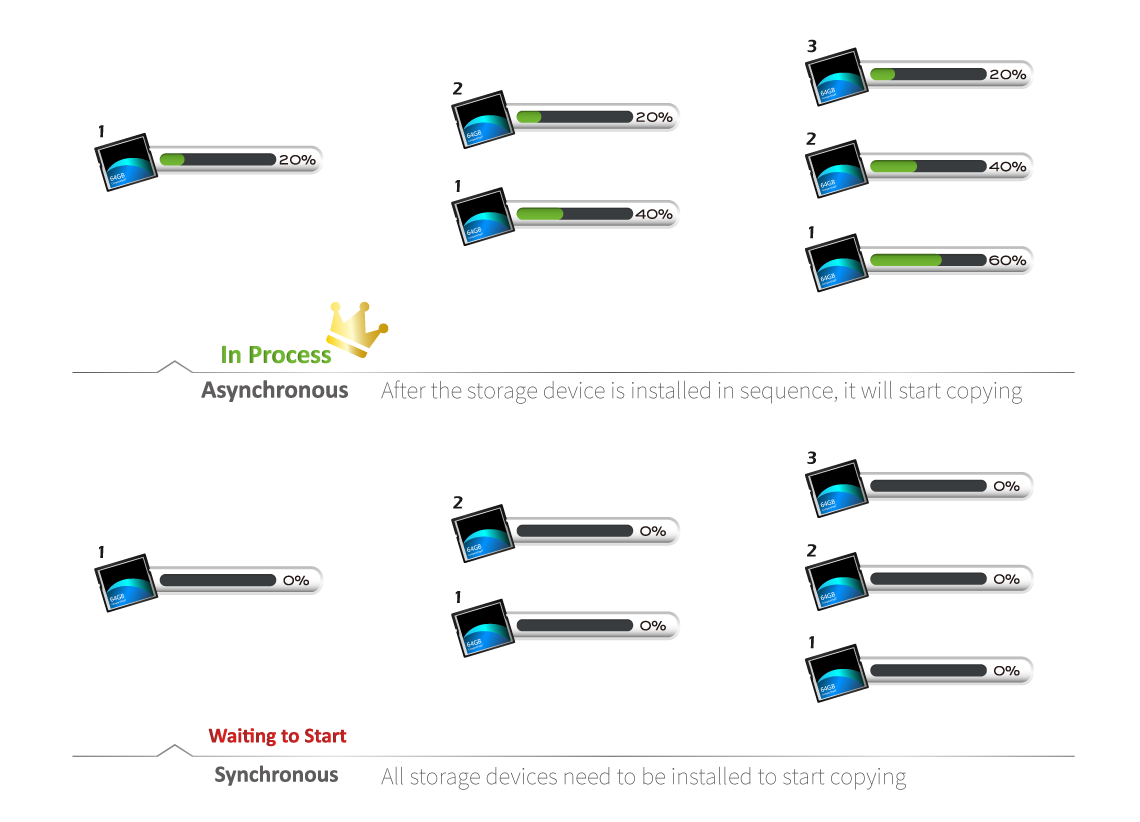

CFast Card Asynchronous Copy Increase Working Efficiency Significantly

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
Cfast duplicator Asynchronous copy

Choose the most efficient copy mode to fit your needs

4 copy modes for CFast card are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.
Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.
cfast card speed test

Powerful Quality Check

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed

*These functions are optional

Four Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse CFast cards, this is an ideal function to erase data based on different level of secrecy.
CFast card sanatize with quick erase

Quick Erase

Erase the index of a CFast card within a few seconds.

CFast card sanatize with full erase

Full erase

Erase the data from a CFast card by overwriting each sector which is able to read/write data.

CFast card sanatize with DoD erase

3-Pass DoD

Erase CFast card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

CFast card sanatize with DoD erase

7-Pass DoD

Erase CFast card 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

Other Features

Simple and intuitive user interface

Standalone, no need of computer or software, therefore no virus infection

Technical Specification

Operation Type Standalone(No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Target 1 (Model No. DM-FS0-5F01TC)
3 (Model No. DM-FS0-5F03TC)
7 (Model No. DM-FS0-5F07TC)
Copy Speed 150MB/s
Copy Mode Sychronous / Asynchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)/
All Partition Copy/Percentage copy
Supported Media Compact Flash (CF Card) Type 1/2, Microdrive
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
macOS: HFS, HFS+, HFSX
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Required 100~240V
Size & Net Weight 1 to 1: 17*19*29cm/ 4kg
1 to 3: 17*19*29cm/ 4kg
1 to 7: 17*19*29cm/ 4kg
Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Storage:5%~95%
Certification FCC, CE, RoHS
